Product Code: CQ PD1-4

Price: $704.00

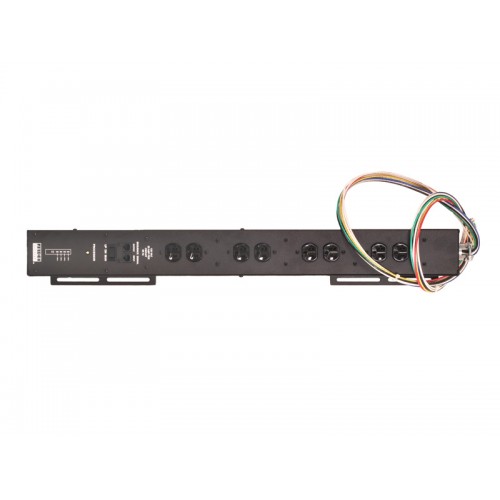

Four Circuit Sequenced 80 AMP Power Distribution System with Remote Control Capability

This autonomous, four step sequencer contains all the circuitry needed for timing and communications with other Juice Goose CQ Series units.

The CQ-PD1-4 saves hardware and labor time compared with options from Middle Atlantic or Lyntec. It's preassembled and requires only one part number. Yet it enables the full power of eighty amps spread across four circuits and four sequence events. Compare that to the six SKUs, nine parts and assembly labor required for the Middle Atlantic MPR raceway.

The compact design of the CQ-PD1-4 fits in the back of a rack. It connects and operates just like any CQ Series model, providing plug-and-play simplicity and integration with any arrangement of Juice Goose CQ Series sequencing modules. It has an external wire harness and flexible conduit to be wired inside a junction box or directly to a circuit breaker panel. No internal hook-up is required. Signal line communication is easy with RJ45 cable input and output ports on the front of the chassis.

Comparison  vs  Middle Atlantic MPR Series

  Juice Goose CQ-PD1-4

Middle Atlantic MPR Raceway

Dimension

33 x 3.5 x 2.5

56 x 2.7 x 3.2

Current Rating (Amps)

80

80

Number of Sequences

4

4

Number of Parts

1

9

Number of SKUs

1

6

Assembly Required

No

Yes

Cost

Less

More
